This page shows our Boat Hoist USA Wood mount kits. "Click"
on any link below for other products.
Steel
Mount Boathouse Lifts |
Twin Motor Boathouse Lifts |
PWC Lifts |
Flat Plate Hoist
We offer more boathouse lift
packages than any other site that you will find!
See all of our Boathouse Lifts Below... Scroll past the
information if you want.
|
SIDE MOUNT KITS INCLUDE:
Complete hoist matched for capacity
(straight line,
NO COMPOUNDING)
A straight line lift will lift your boat 2 times faster than a compounded lift! "Click Here to learn about Compounding"
2 dual pipe supports
2 3" or 4" ball bearing blocks

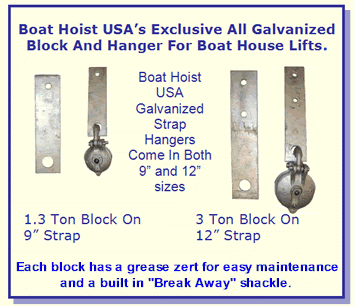

2 12" strap hangers
80' galvanized 7x19 aircraft cable
8 galvanized clamps
4 galvanized thimbles
1 set of 4" x 14' weighted slings
or cradle
All mounting hardware
|
CENTER MOUNT KITS INCLUDE:
Complete hoist matched for capacity (straight line, NO COMPOUNDING) A straight line lift will lift your boat 2 times faster than a compounded lift! "Click Here to learn about Compounding"
1 single pipe support (2 dual
supports on 7000lb & 8500lb)
4 3" or 4" ball bearing blocks
4 12" strap hangers
80' galvanized 7x19 aircraft cable
8 galvanized clamps
4 galvanized thimbles
1 set of 4" x 14' weighted slings
or cradle
All mounting hardware
|
|
SIDE MOUNT OR CENTER MOUNT?
Side mount kits are designed to use the
pipe as load bearing and move it over to one side of the
structure. This will work for most lighter boats, however it
does require special supports so the weight of the boat does not
put too much stress on the unit.
Center mount kits are the best way to
install a boat hoist. The center mount design makes the unit
load free therefore it can easily lift larger boats by keeping
the weight of the boat on the 4 pulleys
WHAT SIZE KIT DO I NEED? When deciding the correct kit for your boat it is always a good idea to buy more lifting capacity than you need. In many cases the boat's weight is only the DRY weight and in some cases it does not include the engine. If your boat weighs 4400 lbs, it would be wise to choose a 6000 lb lift. If you have a cradle, you need to add at least 400 lbs. more to the lift. "Click on the pictures below for a larger view" |
 |
 |
|
 |
 |
 |

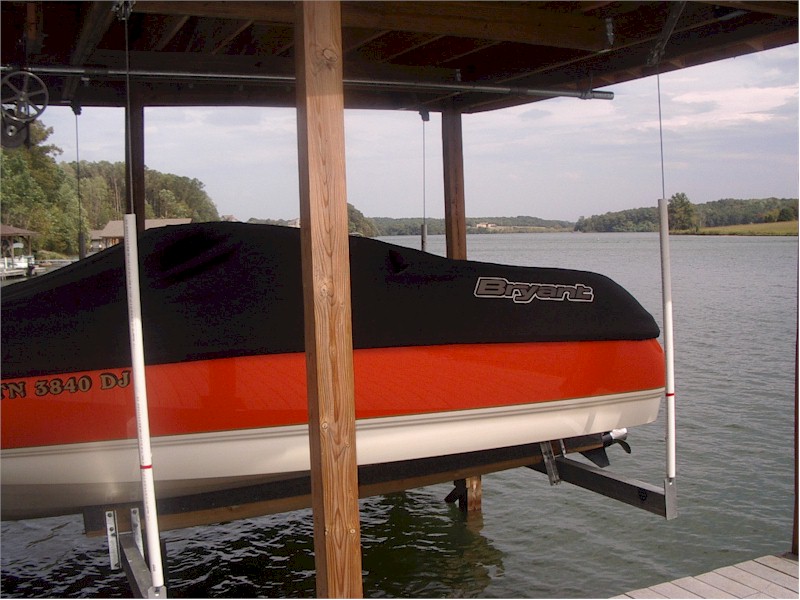

Wood Mount Boathouse Lifts
"GO HERE FOR
STEEL MOUNT"
"Go Here for installation instructions"
, "Go Here for motor and wiring instructions"
and "Go Here for
Up-grades and Options"
Call: 318-987-3000
WSPC 3500 Deluxe Sling Lift $854.00
3500 lb
Deluxe Single Line Sling
Lift Kit For Mounting
pipe in center of Boat House
Kit includes:
BH-35 3500 lb top of the line hoist (Click here for more) With enclosed worm gear and extended worm gear assembly to stop deflection. LIFE TIME WARRANTY (GPA)
1-Galvanized Single Pipe Support
4 Galvanized 1.5 ton pulleys with ball bearings and grease zerks Ball bearings with a grease zerk reduce friction and out last bushing type pulleys.
1 set 4"x14' (weighted) Polyester Slings
80' Galvanized 1/4" cable
8 cable clamps and all hardware needed to install kit in boat house*
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the
cable to wrap around.
"Go Here for installation
instructions" , "Go Here for
motor and wiring instructions" and "Go Here for
Up-grades and Options"
WSPS 3500 Deluxe Sling Lift $899.00 (Pipe
on Side)
3500 lb
Deluxe Single Line Sling
Lift Kit (Pipe on Side)
Great for boats with tops.
Deluxe Lift Kit includes:
BH-35 3500 lb top of the line hoist (Click here for more) With enclosed worm gear and extended worm gear assembly to stop deflection. LIFE TIME WARRANTY (GPA)
2 Galvanized 1.5 ton pulleys with ball bearings and grease zerks Ball bearings with a grease zerk reduce friction and out last bushing type pulleys.
1 set of 4" x 14' Polyester (weighted) Boat Slings
80' Galvanized 1/4" cable
8 cable clamps and all hardware needed to install kit in the boat house*
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap around.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"

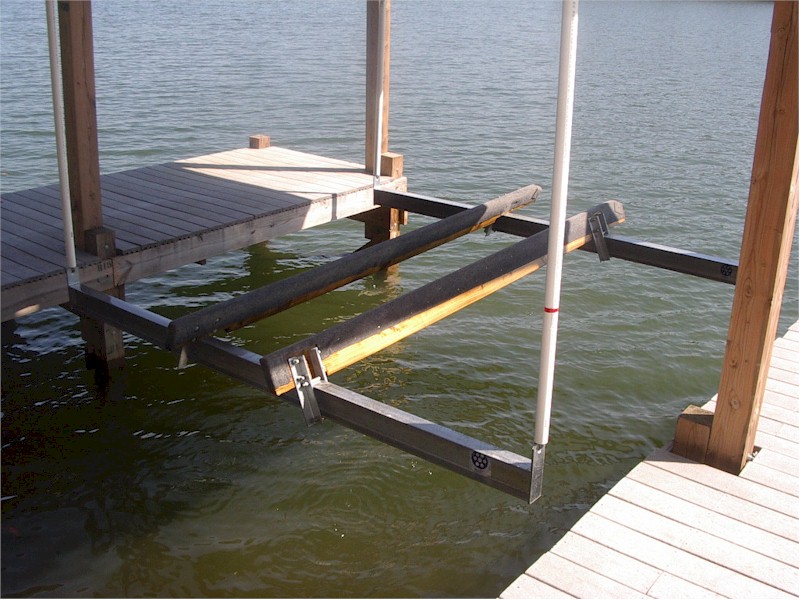

WCPC 3500 Deluxe Cradle Lift $1268.00
3500 lb Deluxe Single Line V-hull Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies
2"I.D. Schedule 40 pipe for the cable to wrap around and the bunk
boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40
pipe for the cable to wrap around and the bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
WSPC 4500 Deluxe Sling Lift $869.00
4500 lb
Deluxe Single Line Sling
Lift Kit for Mounting
pipe in center of Boat House
Kit includes:
BH-45 4500 lb top of the line hoist With enclosed worm gear and extended worm gear assembly to stop deflection. LIFE TIME WARRANTY (GPA)
4-Galvanized 1.5 ton pulleys with ball bearings and grease zerks (straight line, NO COMPOUNDING "Click Here to learn about Compounding") Ball bearings with a grease zerk reduce friction and out last bushing type pulleys.
1 set 4"x14' (weighted) Polyester Slings
80' Galvanized 1/4" cable
8 cable clamps and all hardware needed to install kit in boat house*
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap
around
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit.
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap around.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
Call: 318-987-3000
WCPC 4500 Deluxe Cradle
Lift
$1,288.00
4500 lb Deluxe Single Line V-hull
Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer
supplies 2"I.D. Schedule 40 pipe for the cable to wrap around and the
bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
SWCPC 4500
Super Deluxe Cradle Lift $1,859.00
**NEW ITEM**
4500 lb Deluxe Single Line V-hull
Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer
supplies 2"I.D. Schedule 40 pipe for the cable to wrap around and the
bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40
pipe for the cable to wrap around and the bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40
pipe for the cable to wrap around and the bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
Call: 318-987-3000
WSPC 6000 Deluxe Sling Lift $
1019.00
6000 lb Deluxe Single Line Sling
Lift Kit for Mounting pipe in center of Boat House
Kit includes:
BH-60 6000 lb top of the line hoist with enclosed worm gear and extended worm gear assembly to stop deflection. LIFE TIME WARRANTY (GPA)
4 Galvanized 1.5 Ton pulleys with ball bearings and grease zerk (straight line, NO COMPOUNDING "Click Here to learn about Compounding") Ball bearings with a grease zerk reduce friction and out last bushing type pulleys.
1 set 4" x 14' (weighted) Polyester Slings
80' Galvanized 1/4" cable
8 cable clamps and all hardware needed to install kit in boat house*
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap around.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
WCPC 6000 Deluxe Cradle Lift $1415.00
6000 lb Deluxe Single Line V-hull
Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D.
Schedule 40 pipe for the cable to wrap around and the bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
SWCPC 6000
Super Deluxe Cradle Lift $1,989.00
**NEW ITEM**
6000 lb Deluxe Single Line V-hull
Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer
supplies 2"I.D. Schedule 40 pipe for the cable to wrap around and the
bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
WSPC 7000 Deluxe Sling
Lift $1285.00
7000 lb Deluxe Single Line Sling
Lift Kit for Mounting pipe in center of Boat House
Kit includes:
BH-70 7000 lb top of the line hoist With enclosed worm gear and extended worm gear assembly to stop deflection. LIFE TIME WARRANTY (GPA)
4 Galvanized 3 Ton pulleys with ball bearings and grease zerk (straight line, NO COMPOUNDING "Click Here to learn about Compounding" ) Ball bearings with a grease zerk reduce friction and out last bushing type pulleys.
1 set 6"x 14' (weighted) Polyester Slings
80' Galvanized 5/16" cable, 8 cable clamps and all hardware needed to install kit in boat house*
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap around.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
Call: 318-987-3000
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap around
and the bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
SWCPC 7000
Super Deluxe Cradle Lift $2,135.00
**NEW ITEM**
7000 lb Deluxe Single Line V-hull
Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer
supplies 2"I.D. Schedule 40 pipe for the cable to wrap around and the
bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for the cable to wrap around.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions"and "Go Here for
Up-grades and Options"
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer supplies 2"I.D. Schedule 40 pipe for
the cable to wrap around and the bunk boards.
"Go Here for installation
instructions" and
"Go Here for motor and wiring instructions"
SWCPC 8500
Super Deluxe Cradle Lift $2,179.00
**NEW ITEM**
8500 lb Deluxe Single Line V-hull
Cradle
Lift Kit for Mounting pipe in center of Boat House
1 year warranty on electrical components
5 year warranty on the boat
hoist gear unit
*Customer
supplies 2"I.D. Schedule 40 pipe for the cable to wrap around and the
bunk boards.
"Go Here for installation
instructions" , "Go Here
for motor and wiring instructions" and "Go Here for
Up-grades and Options"
| Stainless Steel Cable, Clamps and Thimbles | $85 |

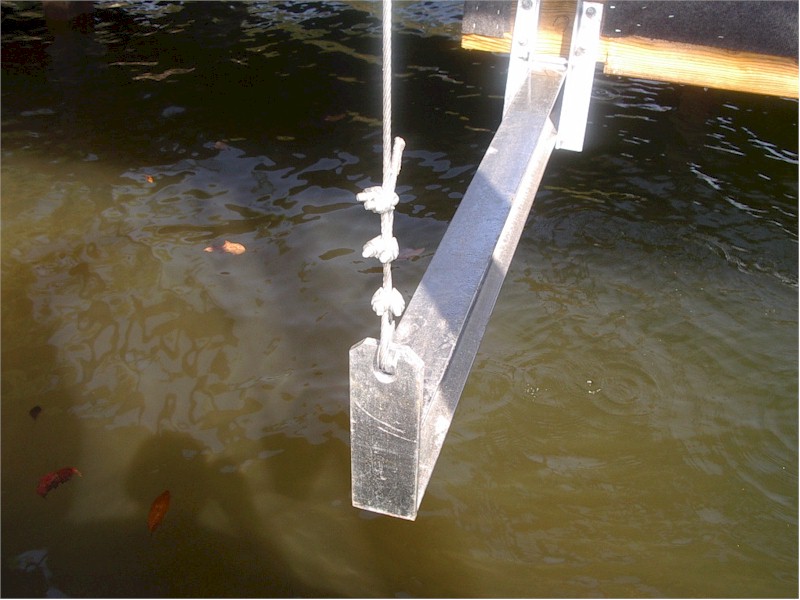

| Stainless Steel Back Plate | $120 |
| Galvanized Back Plate | $7.50 |
| Aluminum Back Plate (3500-4500 lb kits only) | $28 |
| Wired for 220volt with 220volt GFCI up-grade | $28 |
| GEM GR2 Remote | $330 |
| Spring Switch | $17 |
| Front Hoist Cover with Hardware | $52 |
| Front and Back Snap Hoist Cover | $80 |
| Galvanized single HD Pipe Support | $34 |
| Galvanized Dual Pipe Support | $69 |
| Dual Pillow Block Support with Pillow Blocks | $140 |
| Aluminum Cable Winders for 2 inch pipe. | $35 each |
| Pontoon Boat Cradle (for cradle lift kits only) | $120 |
| Guide Post for Cradle (Stanchion with 60" PVC Pipe and caps) | $55 each |
| Guide Post for Cradle (Stanchion with no Pipe) | $42 each |
| 6 lb Cable Weights | $18 each |
| 10 lb Cable Weights | $31 each |
| Grease Drip Pan | $63 |
| Compounding Kit (not weighted) | $180 |
| Compounding Kit (weighted for sling kits) | $305 |
Call: 318-987-3000
Call for Guaranteed low prices
